Blue Iris HTTP API

Joined
Jan 6, 2018
Messages
3
Reaction score
0
Hello all!! Im pretty familiar with Blue Iris and have been using it for 5+ years and absolutely love it. My question is I would like to send HTTP web url commands from lets say a web browser to solo select cameras on the Blue Iris camera viewing screen. I have my shortcuts setup to do so, but im looking for a method to do this from a control system. I've scrubbed the internet for a TON of commands that can be used and im using alot of them currently but can't seem to find anything on this topic. I own an AV company, and sell cameras all the time as well as distributed video system with a control system in place to control all of that. I often use the BI server as a viewer as well as recorder but rather than just putting the BI server in Full screen mode and keep it on grid mode i would like to be able to have my clients be able to push a button on a handheld remote to select their cameras 1-xx and expand the images and then have the ability to go back to grid mode. I'm certain i could do this with a keyboard emulator but would much rather do it through web commands direct to BI if im able to.

Any help on this would be much appreciated!! I have the ability to create a driver to do this, but would need the correct info to plug into this in order to make it work. Im thinking there must be a way to reference the short name of a camera, or the KB Shortcut used for said camera to be able to put each cam in Full screen/solo selected mode and then send it back to grid mode.

Thanks,

John


jaydeel

BIT Beta Team
Joined
Nov 9, 2016
Messages
1,126
Reaction score
1,237
Location
SF Bay Area
Check out this HTTP interface command…


For example…
/admin?sendkeys=DW1:{ENTER} will select camera shortname DW1

And any of the following will return to grid view
/admin?sendkeys={ESC}
/admin?sendkeys=main:{ESC}
/admin?sendkeys=DW1:{ESC}

More key codes can be found here
SendKeys in C++

Joined
Jan 6, 2018
Messages
3
Reaction score
0
Disregard! I got it figured out! I was able to get this setup by using the following commands admin?camera=X&escape for grid mode, and admin?sendkeys=camshortname:camkbshortcut works flawlessly!

Joined
Jan 6, 2018
Messages
3
Reaction score
0

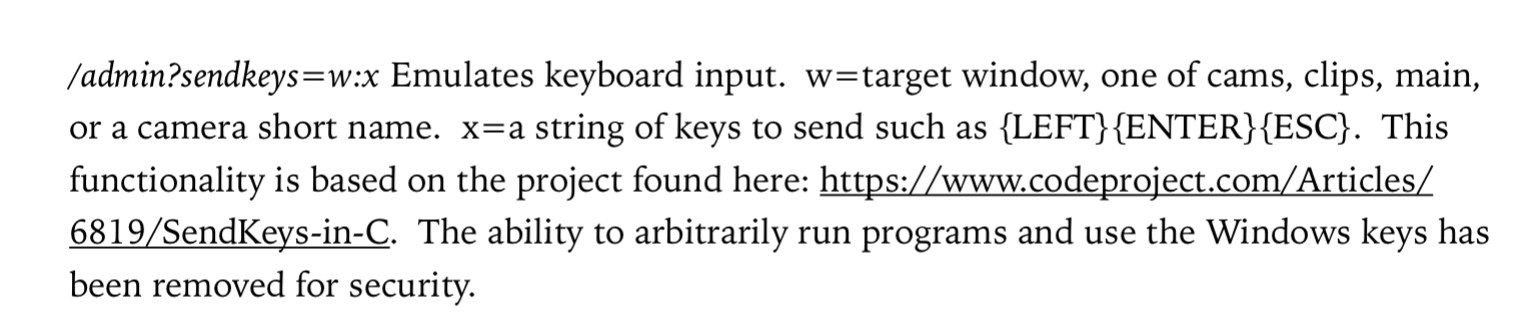

Check out this HTTP interface command…
View attachment 123721

For example…
/admin?sendkeys=DW1:{ENTER} will select camera shortname DW1

And any of the following will return to grid view
/admin?sendkeys={ESC}
/admin?sendkeys=main:{ESC}
/admin?sendkeys=DW1:{ESC}

More key codes can be found here
SendKeys in C++
Thanks fo
Check out this HTTP interface command…
View attachment 123721

For example…
/admin?sendkeys=DW1:{ENTER} will select camera shortname DW1

And any of the following will return to grid view
/admin?sendkeys={ESC}
/admin?sendkeys=main:{ESC}
/admin?sendkeys=DW1:{ESC}

More key codes can be found here
SendKeys in C++
Thanks for your reply man! i got it figured out about 20 mins ago....didnt look through the help file like i should have. Im used to the older BI days when there wasnt a help file hahah. Thanks!
