third camera problem

[tonyby1990]

Hello,

First sorry for my bad englisch, i live in belgium.

i have bougt:

• Dahua 4 Port PoE Switch, DH-PFS3106-4ET-60 - 4x PoE - 60W
• Hikvision DS-2CD2385FWD-I - 8 MP Netwerk Turret Camera (2.8mm)
• Hikvision DS-2CD2386G2-ISU/SL 2.8 mm
• cable: Categorie: CAT 6 • Structuur: 4 x 2 AWG 26/7, twisted pair • Kleur: Ivory • Mantel: PVC • Ader: 100% koper • 100M

when i instal these cameras everything works fine,
after 6 months i buy a 3th camera: Hikvision DS-2DE3A404IW-DE/Wf
for this camera i use the same cable the only thing i dont now for sure is if i have used rj 45 cat 5e or cat6 connector on this cable,
when i ensamble the cable i use this color next to each other brown/brownwhite/blue/bluewhite/green/greenwhite/orange/orangewhite
when i put al cable in only 2 camera work
the new cable i test with alliexpres tester light 1-8 and says cable is ok, but on this cable camera dont work
i have now try to put other camera on the new cable and dont work, the new camera do work on the old line from camera 1 and 2
is it posible the dahua only work for 2 camera ?

again sorry for bad englisch



[sebastiantombs]

The wires in the connector are not correct. They need to be, with the connector viewed with pins up and lock tab on the bottom -

white/orange, orange/white, white/green, blue/white, white/blue, green/white, white/brown, brown/white

This is known as EIA/TIA 568B.

Full information here -

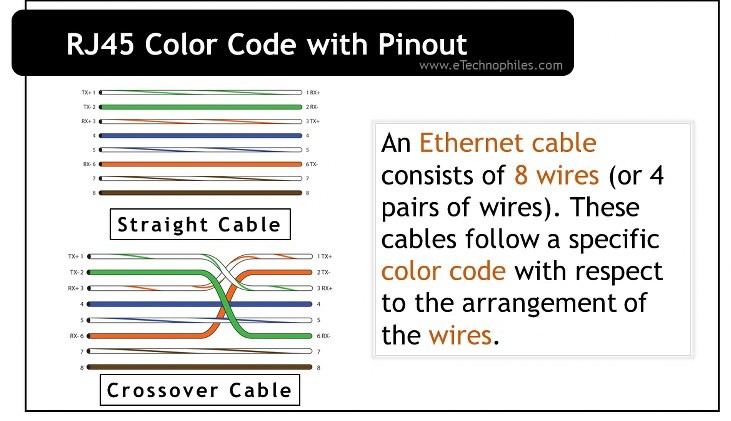

Ethernet RJ45 Color Code with Pinout (T568A, T568B)

And based on the combination of these two connectors(used at the ends of an ethernet cable), two widely used ethernet cables are made, i.e., Straight and

www.etechnophiles.com



[TonyR]

+1^^^.



[Teken]

Hello,

First sorry for my bad englisch, i live in belgium.

i have bougt:

• Dahua 4 Port PoE Switch, DH-PFS3106-4ET-60 - 4x PoE - 60W
• Hikvision DS-2CD2385FWD-I - 8 MP Netwerk Turret Camera (2.8mm)
• Hikvision DS-2CD2386G2-ISU/SL 2.8 mm
• cable: Categorie: CAT 6 • Structuur: 4 x 2 AWG 26/7, twisted pair • Kleur: Ivory • Mantel: PVC • Ader: 100% koper • 100M

when i instal these cameras everything works fine,
after 6 months i buy a 3th camera: Hikvision DS-2DE3A404IW-DE/Wf
for this camera i use the same cable the only thing i dont now for sure is if i have used rj 45 cat 5e or cat6 connector on this cable,
when i ensamble the cable i use this color next to each other brown/brownwhite/blue/bluewhite/green/greenwhite/orange/orangewhite
when i put al cable in only 2 camera work
the new cable i test with alliexpres tester light 1-8 and says cable is ok, but on this cable camera dont work
i have now try to put other camera on the new cable and dont work, the new camera do work on the old line from camera 1 and 2
is it posible the dahua only work for 2 camera ?

again sorry for bad englisch

You don't need to apologize for learning a new language. I've seen people who grew up in North America and English being their first language who couldn't string along a coherent paragraph.

You're doing just fine . . .

Rock On . . .
