New computer needed for Blue Iris

@looney2ns Rearranging components today. So I have my Y wire harness from new egg, I take it, that splits the power to run both the SSD and my purple HDD. The other two wires are the serial ATA for data. And my purple HDD will have that same ATA connector? I don't have the HDD with me, but will be pulling it from the NVR this week when I get there.

So, remove the SSDa and discard the blue tray, put the 4TB in that area, remove the DVD drive and double sticky the SSD on the bottom of the HDD tray?

looney2ns said:

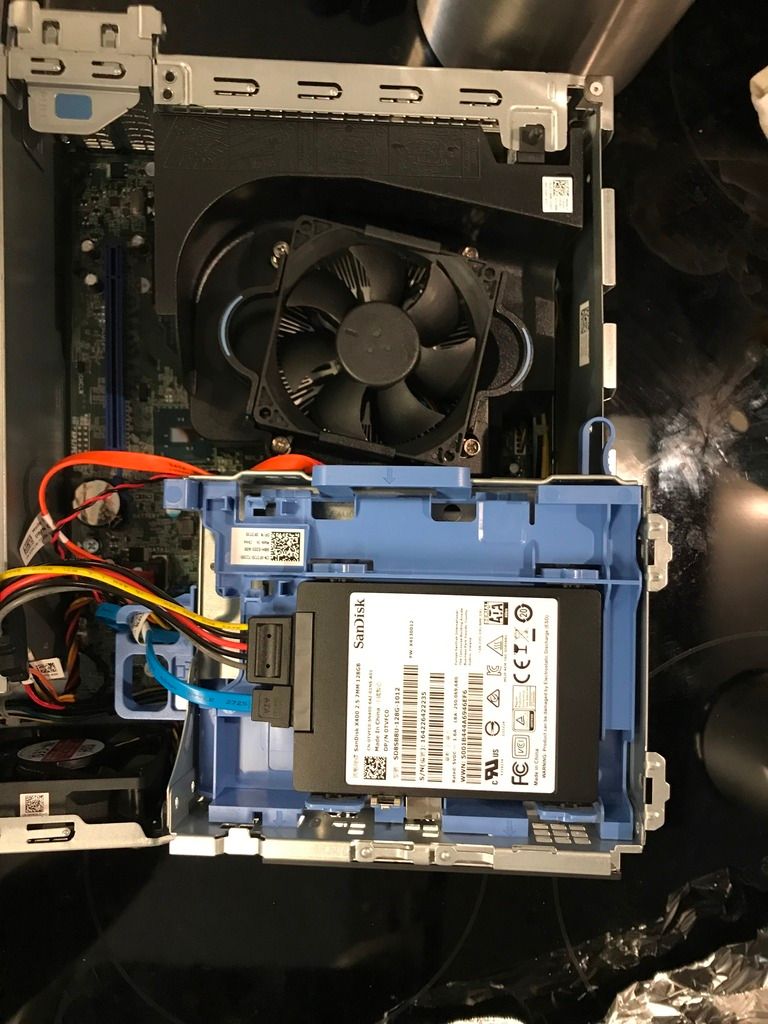

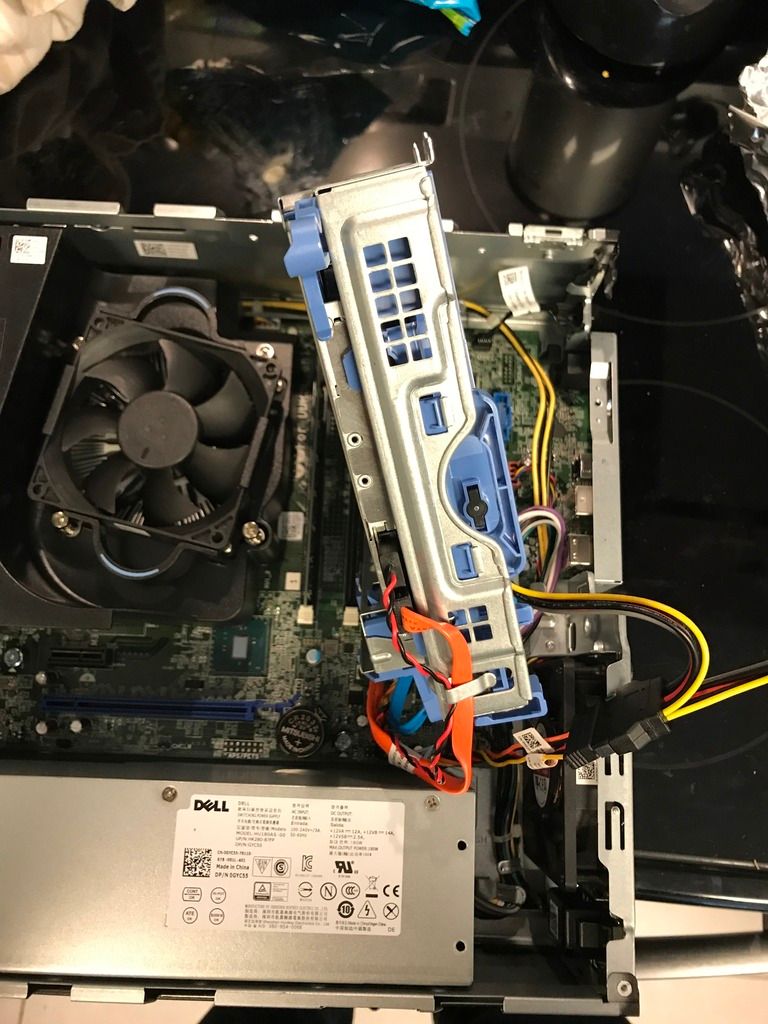

That's how I configured mine. I didn't care what is looked like, as it is hidden away. You can purchase a caddie that will replace the DVD drive and hold the SSD, if you wish.View attachment 18263 View attachment 18264 View attachment 18265 View attachment 18266
Click to expand...

2EEF7D53-750E-4736-9B70-3CBDCD660D95_zpsxs1kvwz6.jpg~original
ACDF35F3-28EF-48A7-A3A1-F0B7BCD4B8FD_zpsbzywxhcv.jpg~original

Last edited:
steltek said:
If you have a spare OS disc laying around, Dell Small Business has a clearance deal on a new T30 server box:

New PowerEdge T30 Mini Tower Server | Dell United States

Use coupon code 349T30 at checkout to get price down to $349+tax, free shipping.

Has an Intel E3-1225 V5 processor (Xeon i7 equivalent) which has onboard HD P530 graphics (supports Quick Sync video), 8GB of memory, 1TB hard drive, and DVDRW drive.
Click to expand...

For anybody that is interested, this server is again being offered at Dell Small Business for $349+tax, free shipping. Add the system to your cart, then apply the same coupon code (i.e. 349T30) to get the price adjustment.

steltek said:
For anybody that is interested, this server is again being offered at Dell Small Business for $349+tax, free shipping. Add the system to your cart, then apply the same coupon code (i.e. 349T30) to get the price adjustment.
Click to expand...

At the risk of exposing how little I really know about computers, I'd like to ask if this setup will be a good option for me. I've read through this entire thread a couple times, and this computer @steltek linked looks like it has all the specs that make a good setup for security cameras. I am planning on installing 4-5 Dahua Starlight Varifocal Turret (IPC-HDW5231R-Z) at my new house. I will be running Blue Iris to control the cameras, but would like a desktop computer in the home office to view live feeds, review recordings, etc. I was also hoping to double up this computer for home use (Facebook, basic internet usage, email, etc.), but I see above that @fenderman does not recommend this. Can I ask why this would be a problem?

Again, showing what little I know, what else would I need to purchase with this computer, outside of keyboard, monitor, mouse, and the networking equipment. There is a lot of talk about the WD Purple, buying Windows 10, extra hard drives....my head is spinning a little. Would it be as easy as someone giving me a list and then pointing to some additional threads to read through to help me set it up?

Thanks in advance for your advice and patience with my ignorance.

JoelJ said:
At the risk of exposing how little I really know about computers, I'd like to ask if this setup will be a good option for me. I've read through this entire thread a couple times, and this computer @steltek linked looks like it has all the specs that make a good setup for security cameras. I am planning on installing 4-5 Dahua Starlight Varifocal Turret (IPC-HDW5231R-Z) at my new house. I will be running Blue Iris to control the cameras, but would like a desktop computer in the home office to view live feeds, review recordings, etc. I was also hoping to double up this computer for home use (Facebook, basic internet usage, email, etc.), but I see above that @fenderman does not recommend this. Can I ask why this would be a problem?

Again, showing what little I know, what else would I need to purchase with this computer, outside of keyboard, monitor, mouse, and the networking equipment. There is a lot of talk about the WD Purple, buying Windows 10, extra hard drives....my head is spinning a little. Would it be as easy as someone giving me a list and then pointing to some additional threads to read through to help me set it up?

Thanks in advance for your advice and patience with my ignorance.
Click to expand...
The system will work and is good (plus has room for extra drives)...the issue is cost...with a windows license its way more expensive other options...
NEVER use your home pc for VMS software..you will have problems.....you can use the home pc to review video but not to run the VMS.

fenderman said:
The system will work and is good (plus has room for extra drives)...the issue is cost...with a windows license its way more expensive other options...
NEVER use your home pc for VMS software..you will have problems.....you can use the home pc to review video but not to run the VMS.
Click to expand...

Thanks for the quick reply. Can you help me understand why it's not a good idea? Is it to keep people from being able to hack into my cameras, or just not a beefy enough computer? We can continue to use my work laptop for home use. My wife's personal laptop needs to be replaced, so I was just hoping I could kill two birds with one stone.

If the Dell T30 system isn't the best option for me, can you help me with what I should be looking for? What should I be searching for on eBay? An HP with i5 or i7 processor, SFF or tower, at least 8 GB Ram...should I go with 1TB HD? What would I need for the model(?)...6400? 6500? 6700? And something preloaded with Win10 Pro? There seems to be a lot of options out there, and without knowing what all the numbers really mean, I feel like I'm just guessing.

JoelJ said:
Thanks for the quick reply. Can you help me understand why it's not a good idea? Is it to keep people from being able to hack into my cameras, or just not a beefy enough computer? We can continue to use my work laptop for home use. My wife's personal laptop needs to be replaced, so I was just hoping I could kill two birds with one stone.

If the Dell T30 system isn't the best option for me, can you help me with what I should be looking for? What should I be searching for on eBay? An HP with i5 or i7 processor, SFF or tower, at least 8 GB Ram...should I go with 1TB HD? What would I need for the model(?)...6400? 6500? 6700? And something preloaded with Win10 Pro? There seems to be a lot of options out there, and without knowing what all the numbers really mean, I feel like I'm just guessing.
Click to expand...
It's to prevent gumming up a VMS pc and causing crashing...even simple security updates will cause downtime...add Murphy's law... there are many threads discussing PC's..

Joe, I'd be happy to help you. I felt the same way. Lots of smart windows computer people on here ( I am not one of them).

I got an i6700 Dell for $569 with windows 10 on ebay, with keyboard, mouse and no screen. Buy a cheap screen if need be or use hdmi and a TV.

WD purple hard drives are designed for the demands of constant video recording. Best to stick with them or cheap extra hard drive if the application is not mission critical like some of us. Then add cable to add purple drive to computer.

get at least 8gb RAM and SSD drive on computer for operating system and blue iris app.

Then add a POE or POE+(if PTZ) switch for cameras.

Then add cameras.

Then add maybe a power backup. I did not. My dell boots right back up after a power outage, I tried it 20 times and it was reliable.

Then add Cat 5 e cable pulled to each spot of cameras, my cable cost me quite a bit

Then add junction boxes to each camera, Dahua's fit best but home depot circular boxes can work, waterproof each connection

Waterproof electrical box to house

Camera mounts

lighting protection if needed

etc.

All in all my system ended up costing $3,800, I started with a $1,500 budget. 7 Cameras, 3 fixed, 2 varifocals, 1 PTZ 30x zoom, prices explode fast ;/

  • Like
Reactions: ilrider78 and aristobrat
Thanks @CaliGirl. This is helpful!

I've got the cameras picked out, which I mentioned above. How do you like your Dahuas? Everything I've seen on them makes them look perfect for what I need...which is just simple surveillance around the house. A lot of packages end up missing from doorsteps, so it'd be nice to prove whether they were ever delivered in the first place or if someone walked off with them. Basically I'm just looking for something that will start recording if someone steps onto my property, and is clear enough to identify who it is should they be up to no good. I don't have a huge house or yard, so I don't need a super elaborate setup. But I'm an engineer by trade, so I tend to overthink and overdesign everything. Haha

I'm getting a spool of CAT6 from Monoprice for the cameras and other home network equipment. We're building a new house, so it will be nice to be able to prewire everything. I have a basic 16-port ethernet switch (16-Port Unmanaged 10/100/1000 Mbps Gigabit Ethernet Switch, Rack Mountable - Monoprice.com) also picked out on Monoprice, and was able to score this (Amazon.com: WS-GPOE-12-1U gigabit Poe injector - 12 Port Power over Ethernet rack mount with shielded RJ45 - power supplies available separately, use one or two power supplies with 24, 48 or 56 volts: Computers & Accessories) POE injector from a guy at work who said he didn't want/need it anymore. I think I've got everything else I need, so I'm now just trying to figure out what to do about recording, monitoring, storing, etc. Like you said, there are lots of smart people on this website. I love all the info, but it takes a while to sort through and decipher some of it. ;) Thanks again.

As an Amazon Associate IPCamTalk earns from qualifying purchases.
Before I forget, THANK YOU for posting the discount code! I was looking to upgrade an old Blue Iris 3 system that I had not touched in a while and that hit the spot! Blue Iris 4 and that machine are just what I needed. I went from 100% CPU and occasional crazy behavior to running 5 720P cams and 6 legacy 640x480 cams with an average 32% CPU loading...

steltek said:
For anybody that is interested, this server is again being offered at Dell Small Business for $349+tax, free shipping. Add the system to your cart, then apply the same coupon code (i.e. 349T30) to get the price adjustment.
Click to expand...

Eric Weaver said:
Before I forget, THANK YOU for posting the discount code! I was looking to upgrade an old Blue Iris 3 system that I had not touched in a while and that hit the spot! Blue Iris 4 and that machine are just what I needed. I went from 100% CPU and occasional crazy behavior to running 5 720P cams and 6 legacy 640x480 cams with an average 32% CPU loading...
Click to expand...
that cpu usage is still very high...if you record direct to disk and use hardware acceleration you will be at 10-15 percent.

fenderman said:
that cpu usage is still very high...if you record direct to disk and use hardware acceleration you will be at 10-15 percent.
Click to expand...

Thank you for the info. I sure have not gotten that far with it yet. I have another round of camera installs coming soon, and it looks like I ought to figure that part of it out when I get deep into it again!

ilrider78 said:
@fenderman Do you foresee any issues getting a warranty claim if purchased off eBay? Just curious...
Click to expand...
I am not sure about HP, but with Dell you will be fine. I bought one, had some issues and Dell sent out people to fix it. The first time they installed a new motherboard. The second time another new motherboard and a power supply. No questions asked. Basically got most of a new computer at no additional cost.
