Using Spotter Cameras to direct a PTZ where to look in an NVR or Blue Iris and setting a spotter cam as a priority in Blue Iris

Great thread and I now have left and right spotter cams cloned from actual cams. My PTZ is in the middle, between those two. When a spotter cam triggers, the PTZ moves to that area and then returns. Love it!

Question... Is there a way to not have the PTZ camera detect motion when changing presets? Thanks

  • Like
Reactions: Flintstone61
105437 said:
Question... Is there a way to not have the PTZ camera detect motion when changing presets? Thanks
Click to expand...

Yes. PTZ tab near bottom right. Check the box for "Suspend motion detection."

Also can set different zones for different presets. Select a preset, Motion detection, Override motion zones, Edit.

  • Like
Reactions: 105437
Mike A. said:
Yes. PTZ tab near bottom right. Check the box for "Suspend motion detection."

Also can set different zones for different presets. Select a preset, Motion detection, Override motion zones, Edit.
Click to expand...
Thanks for the reply! Also, what tab do I go to and create individual zone maps for each preset?

After initial testing, I'm going to turn off "Suspend motion detection". I believe it may be missing the first opportunity to trigger when it arrives at the preset. We'll see.

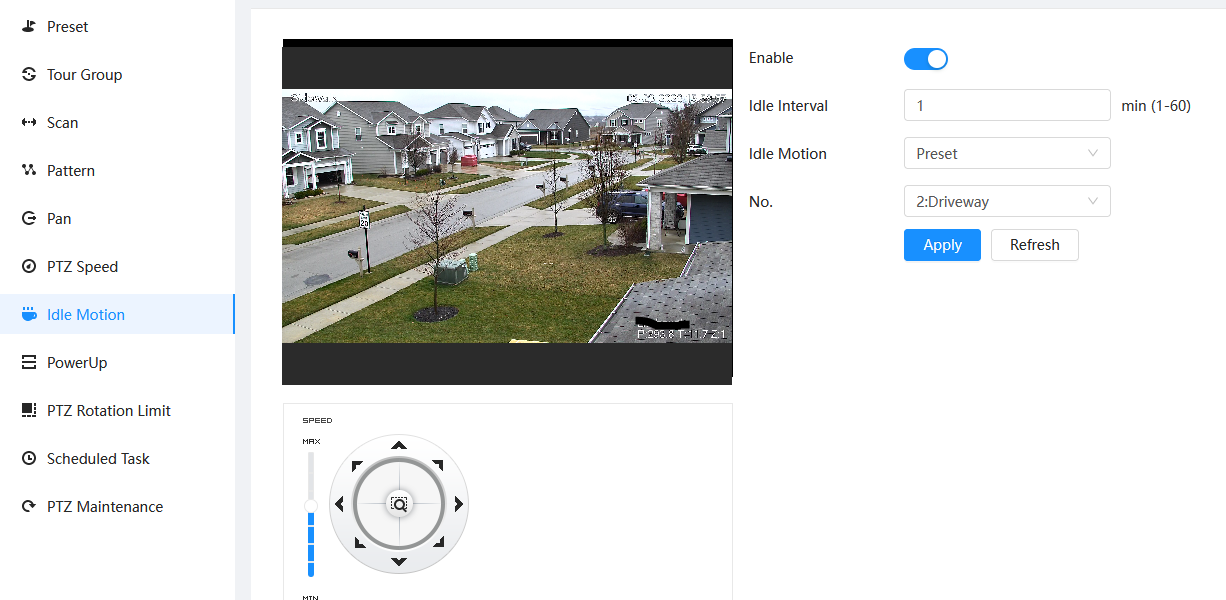

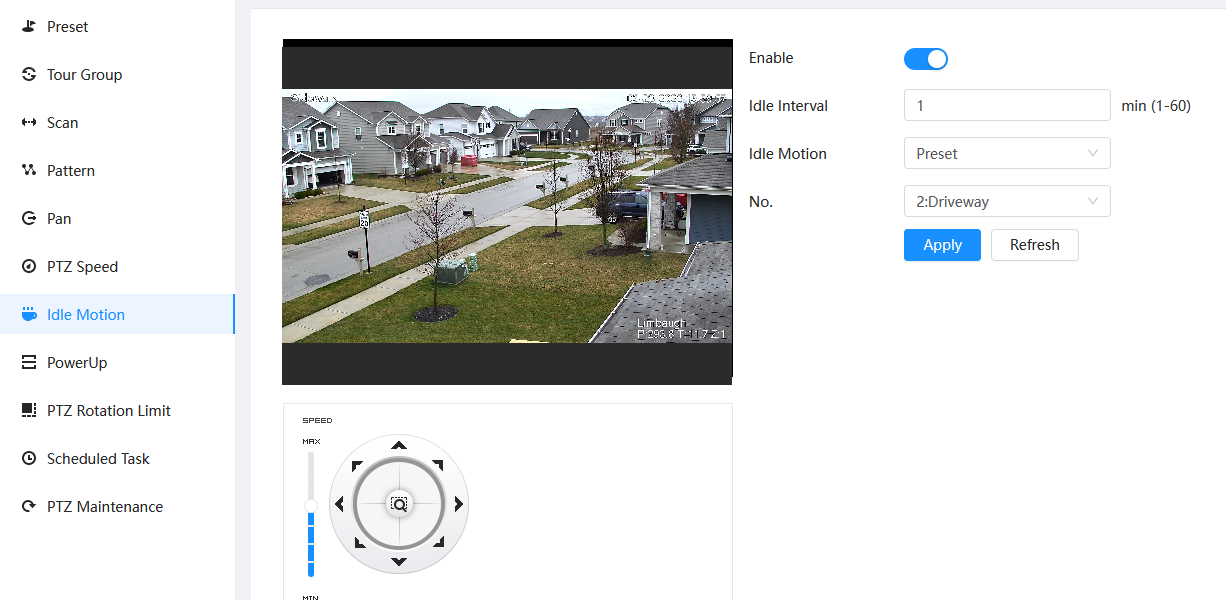

I've been dicking around with my SD4A425DB-HNY and it appears the "Idle Motion" feature in the WEB5.0 GUI will return it back to any preset you would like after it has been triggered to move. :thumb:



Attachments

  • 1679601667371.png
    360.9 KB · Views: 140
  • Like
Reactions: Audrius and CanCuba
Ri22o said:
I've been dicking around with my SD4A425DB-HNY and it appears the "Idle Motion" feature in the WEB5.0 GUI will return it back to any preset you would like after it has been triggered to move. :thumb:

View attachment 157787
Click to expand...

Is this working reliably for you? I have my SD49425XB-HNR set to return to Preset1 after 1 minute of idle motion and it doesn't seem to work. What is everybody else doing to reliably return their camera after it has completed tracking OR has failed to detect anything after a spotter has triggered it?

kjinxx2 said:
Is this working reliably for you? I have my SD49425XB-HNR set to return to Preset1 after 1 minute of idle motion and it doesn't seem to work. What is everybody else doing to reliably return their camera after it has completed tracking OR has failed to detect anything after a spotter has triggered it?
Click to expand...
It still seems to be. Can you confirm you don't have motion at Preset2 that could be keeping it there and not letting it return?

Yep - no motion, granted I just set this up over the past few days and still trying to figure out a handful of aspects on this but this feature in particular is not working. I am thinking if preset 2 is called from BI and the camera does not move on it's own it will not trigger the 'idle' function and thus will not return to preset 1. I will play around more. Perhaps something is up with my firmware but I definitely do not want to touch that

I don't think it would be a firmware issue, and yes for the 49425 do not update it or you will lose autotracking.

If anything it is a BI version issue as I have helped many over DM and have seen it respond differently with newer versions. In some instances you have to put a PTZ command in the alert to put it back.

Did you set up a schedule like this? In my BI version that is what sends it back to the normal preset


wittaj said:
I don't think it would be a firmware issue, and yes for the 49425 do not update it or you will lose autotracking.

If anything it is a BI version issue as I have helped many over DM and have seen it respond differently with newer versions. In some instances you have to put a PTZ command in the alert to put it back.

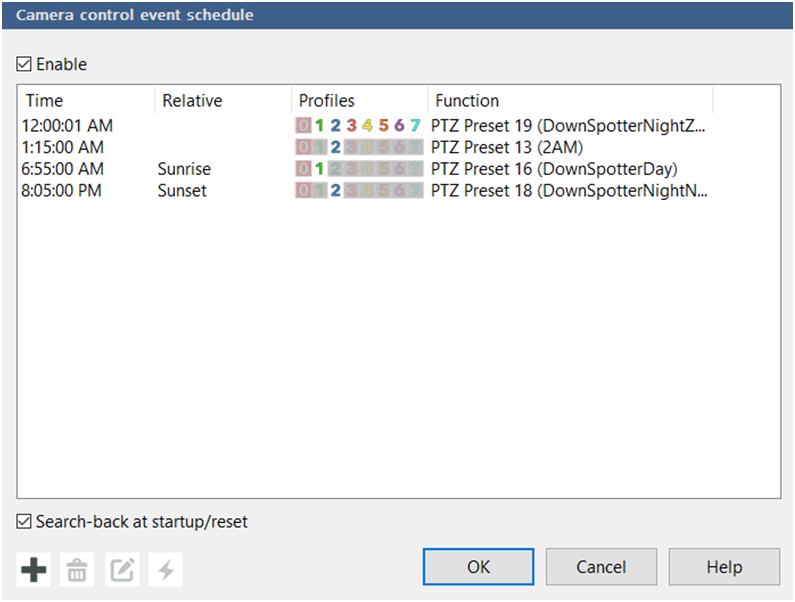

Did you set up a schedule like this? In my BI version that is what sends it back to the normal preset

View attachment 160949
Click to expand...

I was originally using a 60 second wait w/ Preset call in the alert dialogue which seems to work fine (I enabled the wait to be cancelled if the cam was retriggered) but noticed that in this tread a few folks were talking about having the cam return to 'home' automatically after specific triggers ended. Would be nice if BI had a way to schedule an event after a trigger ended!

kjinxx2 said:
Is this working reliably for you? I have my SD49425XB-HNR set to return to Preset1 after 1 minute of idle motion and it doesn't seem to work. What is everybody else doing to reliably return their camera after it has completed tracking OR has failed to detect anything after a spotter has triggered it?
Click to expand...

I had a similar issue. Time Task can be used to return it to a preset. Thread is here.

  • Like
Reactions: Cooltiger
CanCuba said:
I had a similar issue. Time Task can be used to return it to a preset. Thread is here.
Click to expand...

Ahh - for some reason the Time Task doesn't work either - interestingly when I go into the camera's menu through the live stream menu Idle & Time Task don't exist - must be a firmware issue where the GUI is giving the option but the feature actually doesn't exist in the firmware?


  • Like
Reactions: CanCuba

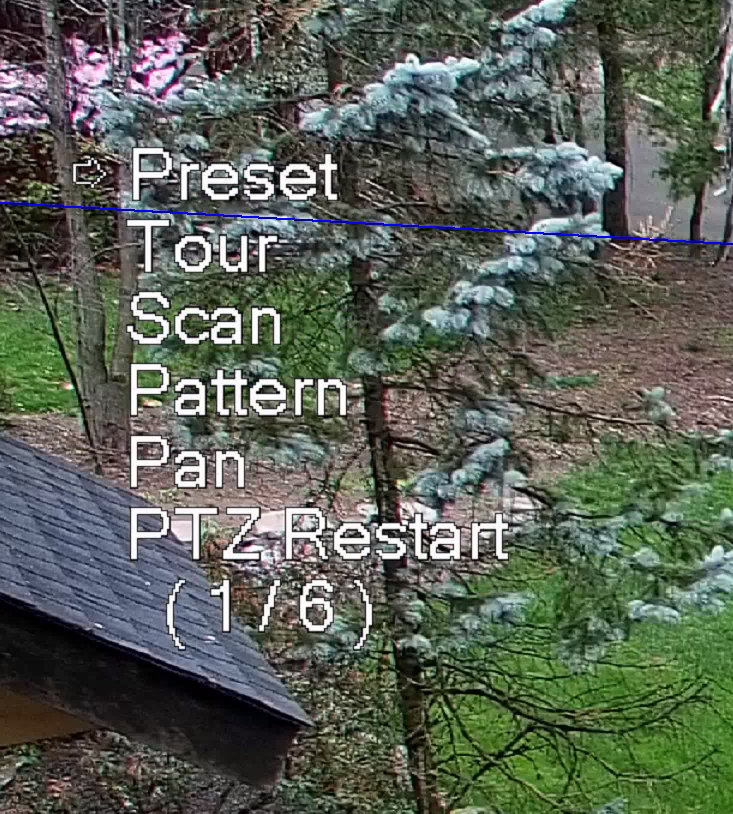

kjinxx2 said:
Ahh - for some reason the Time Task doesn't work either - interestingly when I go into the camera's menu through the live stream menu Idle & Time Task don't exist - must be a firmware issue where the GUI is giving the option but the feature actually doesn't exist in the firmware?

View attachment 161114
Click to expand...

Is that the analog version of the 49425?

Nope it is a refurb SD49425XB-HNR (IP) that I bought from Andy - wondering if something is up with the firmware? Does anybody else have this cam with this firmware?

Device Type: SD49425XB-HNR
System Version: V2.800.1341000.0.R.P9.2522.UN.NR
Build Date: 2020-03-12
PTZ Version: V2.401.0000000.64.RHNZ_200219_34642

Darn near identical to mine.

Device Type SD49225XA-HNR
System Version V2.800.1341000.0.R.P9.2520.UN.NR,
Build Date: 2020-03-12
PTZ Version V2.401.0000000.64.RHNZ_200219_34642


How did you get the selections to show up over the image? Mine are in the typical GUI format:


I stumbled across the OSD menu through Dahua's website:

DahuaWiki

dahuawiki.com dahuawiki.com

Essentially in the 'live view' you hit 'Menu' on the right side - i was shocked to see that my menu did not match the website GUI
