Full ALPR Database System for Blue Iris!

algertc said:
Nice update available:
Click to expand...

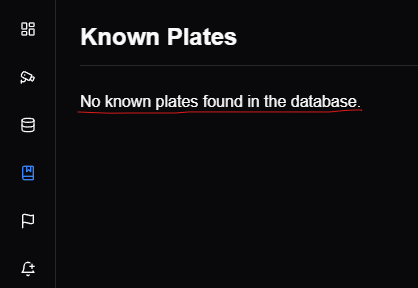

Known Plates tab says "No known plates found" even though they are in the table.

Screenshot 2025-01-03 104441.png

algertc said:
Nice update available:
  • Time format fix

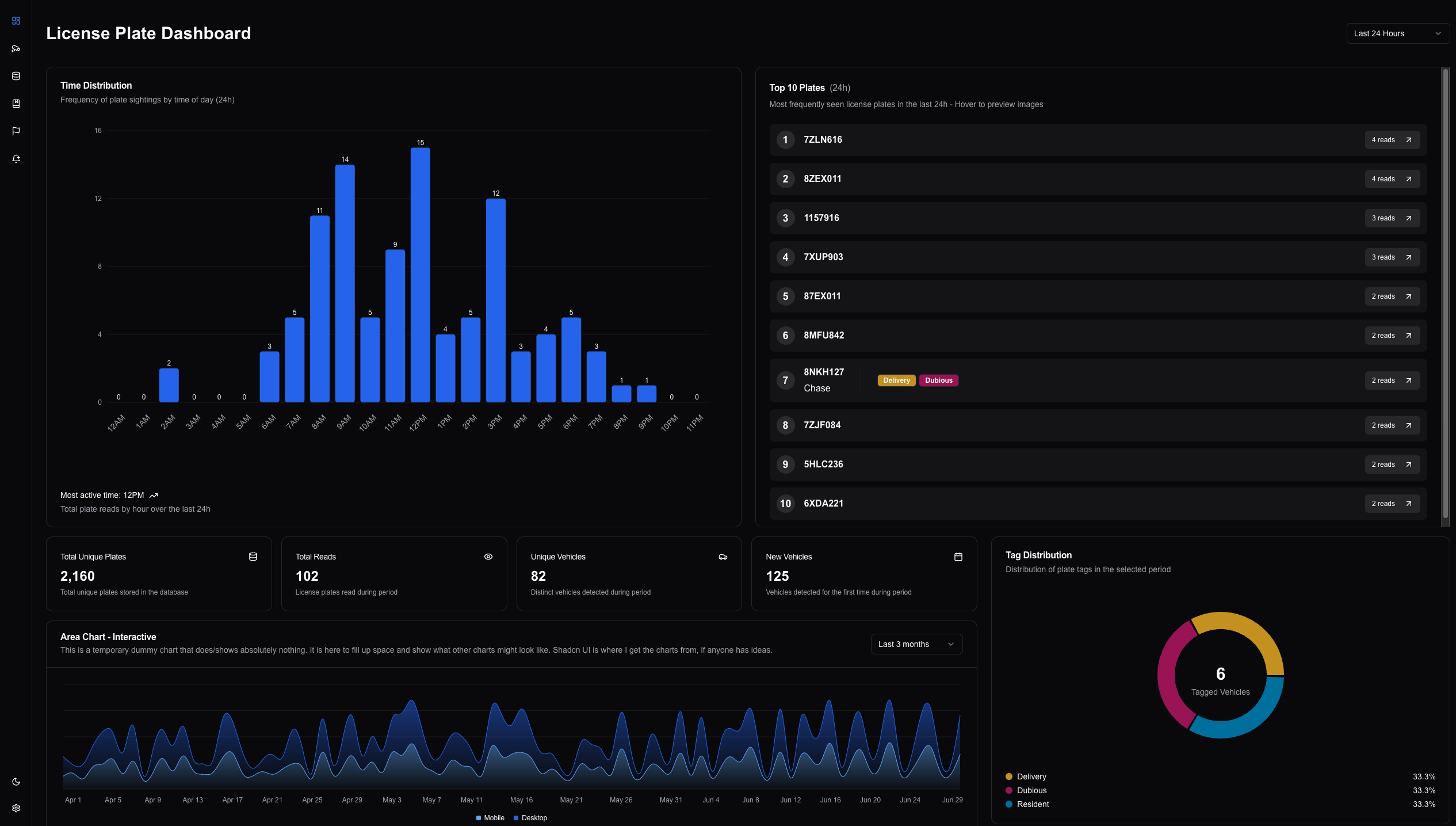

  • Dashboard Redux: adjustable period, new visuals, top plates improvements, better responsiveness, clickable bars on chart, hover for quick look.
  • Ignore flag for known plates (Eyeball in known plates page)
  • Live feed can now actually be live updated. Switchable with toggle. Your page and scroll position are maintained on receipt of a new plate.
  • Ability to edit tag name and color
  • Sensible default sorting of database
  • Speed and loading improvements

I would definitely like to do more advanced notification rules. Sorting on live feed page will come next. I will add the untagged filter also @VideoDad

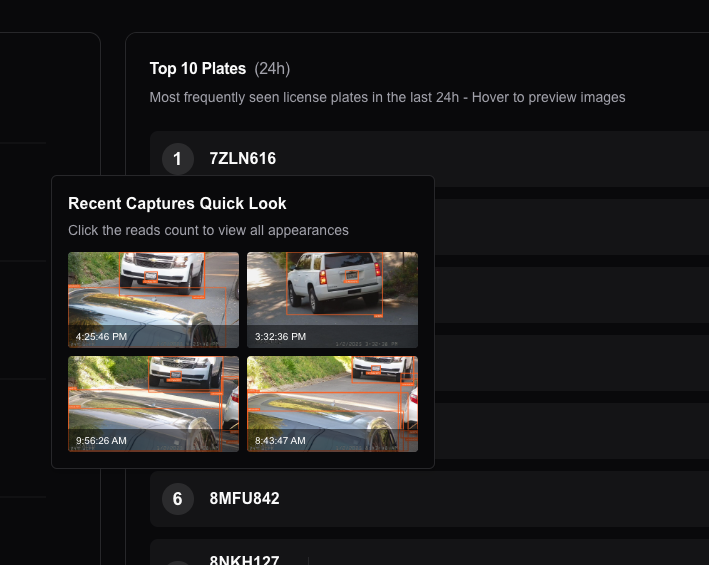

Pics below. I thought the hover for quick look thing was pretty cool.

View attachment 211217
View attachment 211218
Click to expand...
@algertc out of the blue the API Key changed, I did the update this morning and everything was working fine then at about 1:00pm the ALPR-Dashboard stop logging plates. What I found is the API Key changed.

  • Like
Reactions: algertc
VideoDad said:
Yes, I have about 20 known plates in the database which I confirmed directly. I can also see the details throughout the other screens. But the Known Plates tab doesn't bring anything up, after the update.
Click to expand...
It works for me after the update, did you update the docker-compose.yml and migrations.sql files before update the Docker container.

  • Like
Reactions: algertc
@algertc some more ideas for enhancements

  • Have the Area Chart - Interactive show each camera (for users that have more then one camera)
  • Have the First Seen and Last Seen show the full date and time
  • Add a Camera Filter (All, Camera1, Camera2, ...) to the License Plate Dashboard

  • Like
Reactions: algertc and Vettester
MikeLud1 said:
It works for me after the update, did you update the docker-compose.yml and migrations.sql files before update the Docker container.
Click to expand...
Yes, I did. But apparently the migrations.sql failed to run and add the 'ignore' flag to Known Plates. I did a full refresh and ran the update again and this time it took. Thanks, as usual, @MikeLud1

  • Like
Reactions: MikeLud1
MikeLud1 said:
@algertc I do not think it is a bug but when you have Live Update enabled the Hour Range filter is useless, you can not set the range.
Click to expand...
I did notice that… The way the live update works is kind of sloppy and is a fix for my previous bad code. If you disable it the filter should work. I will redo the whole page correctly at some point.

I'm seeing occasional failures when making API calls to the database:

Code:
    Line 16878: 1     1/4/2025 9:45:20.267 AM    Cam3a                   Web: No stream: 500
    Line 17087: 1     1/4/2025 10:26:51.445 AM    Cam3b                   Web: No stream: 500
    Line 17303: 0     1/4/2025 1:08:02.653 PM    Cam3a                   Web: 201 Created
    Line 17316: 0     1/4/2025 1:08:12.798 PM    Cam3b                   Web: 201 Created
    Line 17427: 0     1/4/2025 1:34:49.643 PM    Cam3a                   Web: 201 Created
    Line 17439: 0     1/4/2025 1:34:59.583 PM    Cam3b                   Web: 201 Created
    Line 17486: 0     1/4/2025 1:41:35.935 PM    Cam3b                   Web: 201 Created
    Line 17733: 0     1/4/2025 2:05:22.366 PM    Cam3a                   Web: 201 Created
    Line 17753: 1     1/4/2025 2:06:23.693 PM    Cam3b                   Web: No stream: 409
    Line 17812: 0     1/4/2025 2:12:12.658 PM    Cam3b                   Web: 201 Created
    Line 17961: 1     1/4/2025 2:34:38.655 PM    Cam3a                   Web: No stream: 409
    Line 18003: 0     1/4/2025 2:40:58.018 PM    Cam3b                   Web: 201 Created
    Line 18156: 1     1/4/2025 3:22:59.600 PM    Cam3b                   Web: No stream: 409
    Line 18288: 0     1/4/2025 3:59:12.794 PM    Cam3b                   Web: 201 Created
    Line 18324: 0     1/4/2025 4:15:41.671 PM    Cam3b                   Web: 201 Created
    Line 18359: 1     1/4/2025 4:31:57.388 PM    Cam3a                   Web: No stream: 409
    Line 18393: 0     1/4/2025 4:37:11.364 PM    Cam3a                   Web: 201 Created
    Line 18405: 0     1/4/2025 4:37:22.452 PM    Cam3b                   Web: 201 Created
    Line 18489: 1     1/4/2025 5:03:08.954 PM    Cam3b                   Web: No stream: 400

Are there logs somewhere that I can view to get a better idea why these occasionally fail?

VideoDad said:
I'm seeing occasional failures when making API calls to the database:

Code:
    Line 16878: 1     1/4/2025 9:45:20.267 AM    Cam3a                   Web: No stream: 500
    Line 17087: 1     1/4/2025 10:26:51.445 AM    Cam3b                   Web: No stream: 500
    Line 17303: 0     1/4/2025 1:08:02.653 PM    Cam3a                   Web: 201 Created
    Line 17316: 0     1/4/2025 1:08:12.798 PM    Cam3b                   Web: 201 Created
    Line 17427: 0     1/4/2025 1:34:49.643 PM    Cam3a                   Web: 201 Created
    Line 17439: 0     1/4/2025 1:34:59.583 PM    Cam3b                   Web: 201 Created
    Line 17486: 0     1/4/2025 1:41:35.935 PM    Cam3b                   Web: 201 Created
    Line 17733: 0     1/4/2025 2:05:22.366 PM    Cam3a                   Web: 201 Created
    Line 17753: 1     1/4/2025 2:06:23.693 PM    Cam3b                   Web: No stream: 409
    Line 17812: 0     1/4/2025 2:12:12.658 PM    Cam3b                   Web: 201 Created
    Line 17961: 1     1/4/2025 2:34:38.655 PM    Cam3a                   Web: No stream: 409
    Line 18003: 0     1/4/2025 2:40:58.018 PM    Cam3b                   Web: 201 Created
    Line 18156: 1     1/4/2025 3:22:59.600 PM    Cam3b                   Web: No stream: 409
    Line 18288: 0     1/4/2025 3:59:12.794 PM    Cam3b                   Web: 201 Created
    Line 18324: 0     1/4/2025 4:15:41.671 PM    Cam3b                   Web: 201 Created
    Line 18359: 1     1/4/2025 4:31:57.388 PM    Cam3a                   Web: No stream: 409
    Line 18393: 0     1/4/2025 4:37:11.364 PM    Cam3a                   Web: 201 Created
    Line 18405: 0     1/4/2025 4:37:22.452 PM    Cam3b                   Web: 201 Created
    Line 18489: 1     1/4/2025 5:03:08.954 PM    Cam3b                   Web: No stream: 400

Are there logs somewhere that I can view to get a better idea why these occasionally fail?
Click to expand...
I will be adding a page to view the logs from inside the app soon. You can check by attaching to the container. Try reducing your JPEG size/quality in blue Iris and checking the rest of the settings. I encountered that error a few times too when setting up a new cam. That’s fully a BI thing.
