Full ALPR Database System for Blue Iris!

[sunny0101786]

See the attached pictures some of the cars' license plates appear blurry despite using the same camera settings. Any idea what might be causing this?



[Vettester]

It's still not picking up any plates.

Are your plates being captured in BI?



[sunny0101786]

I took a snapshot from a BI alert video by freezing the best frame.



[Vettester]

Any idea what might be causing this?

Your camera is out of focus.



[MikeLud1]

The checkmark in AOI is not saving. Every time I revisit the option, it stays unchecked.

Are you clicking on Edit and drawing a box around the AOI



[Vettester]

fixed the missing x-api-key:

You fixed the missing x-api-key issue, but did you fix the missing "/api/plate-reads" in your ip address? It should be MY-PC:3000/api/plate-reads



[algertc]

You fixed the missing x-api-key issue, but did you fix the missing "/api/plate-reads" in your ip address?

Good spot. @Vettester is right. I would use localhost instead of your hostname too if it’s the same machine just to prevent any issues.

Did you use the install script or did you create the directories and copy the files manually? Please check the logs tab at the bottom left of the app also and see if there are any other errors there. @sunny0101786



[sunny0101786]

You fixed the missing x-api-key issue, but did you fix the missing "/api/plate-reads" in your ip address? It should be MY-PC:3000/api/plate-reads

i get this error

This page isn’t working​

If the problem continues, contact the site owner.


HTTP ERROR 405



[Vettester]

i get this error

Post a screenshot of your configuration.



[wittaj]

Were you actually capturing plates in BI before jumping down this rabbit hole or did you think this was the magic solution?

You need to have been capturing plates reliably day and night before going down this path.



[Vettester]

Were you actually capturing plates in BI before jumping down this rabbit hole or did you think this was the magic solution?

I asked him that and he said he was but it looks like he deleted that post.



[sunny0101786]

I asked him that and he said he was but it looks like he deleted that post.

i misunderstood your post, i edited the reply later.



[wittaj]

You may have a slightly better chance than USA plates with those being larger, but I think that field of view is too wide to reliably get plates, especially at night.

But if you haven't got that part worked out, then hold on this database until the first part is resolved.



[sunny0101786]

Post a screenshot of your configuration.

what configuration you are referring to? i'm trying this

http://192.168.2.59:3000/dashboard/api/plate-reads

for more info please check my previous post Full ALPR Database System for Blue Iris!



[Vettester]

what configuration you are referring to?



[Vettester]

what configuration you are referring to? i'm trying this

http://192.168.2.59:3000/dashboard/api/plate-reads

for more info please check my previous post Full ALPR Database System for Blue Iris!

I saw your previous post. I just want to confirm you had everything configured correctly after you changed it.

And your accessing the app using MY-PC:3000 in a browser?



[sunny0101786]

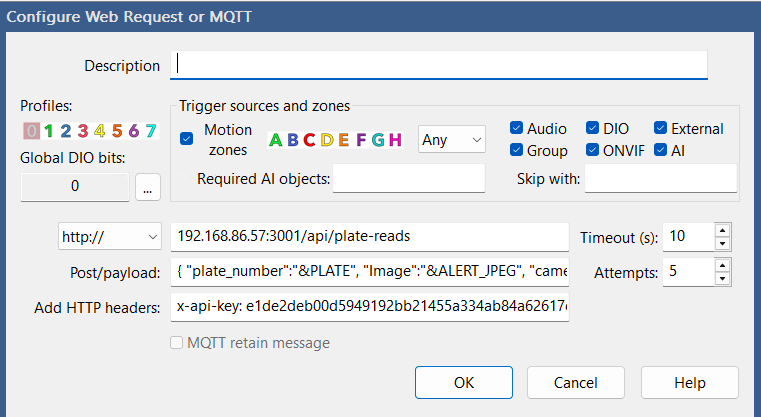

View attachment 215228

Oh! Okay, I just fixed that part. Thanks for spotting that error!



[sunny0101786]

And your accessing the app using MY-PC:3000 in a browser?

Sorry, that was my mistake I was adding it to the browser instead of the settings.



[algertc]

what configuration you are referring to? i'm trying this

http://192.168.2.59:3000/dashboard/api/plate-reads

for more info please check my previous post Full ALPR Database System for Blue Iris!

Where did /dashboard/ come from? It should look exactly as it does in the example.



Let me just clarify the flow of how things work for this in case anything doesn't make sense

1) Your existing Blue Iris system uses either CodeProject or DeepStack and has an ALPR module installed. In this setup, the AI server (completely separate from this application) sends back the results from its detection to Blue Iris and BI saves it.

2) We use a Blue Iris alert action to then send that AI prediction to this application so that you can store and use them instead of just having it in the memo in Blue Iris. The &PLATE, &ALERT_JPEG, etc are Blue Iris "macros" which will replace that text with what the AI server sent.

3) This application is a combination of a web app and database that uses an API route to receive the data from Blue Iris and store it for you so you can actually use it.

4) Everything here is completely separate and is just a way to manage your ALPR recognitions.


So it goes ALPR camera stream -> Blue Iris sees motion and triggers -> AI server with ALPR module detects license plate -> Blue Iris gets the plate back from the AI -> Alert Action uses the & macros to get that data from the alert -> Web request sends data to the /api/plate-reads route of this app -> this app receives that data, processes it, then stores it in its database -> you can then access and manage the recognitions in your browser.

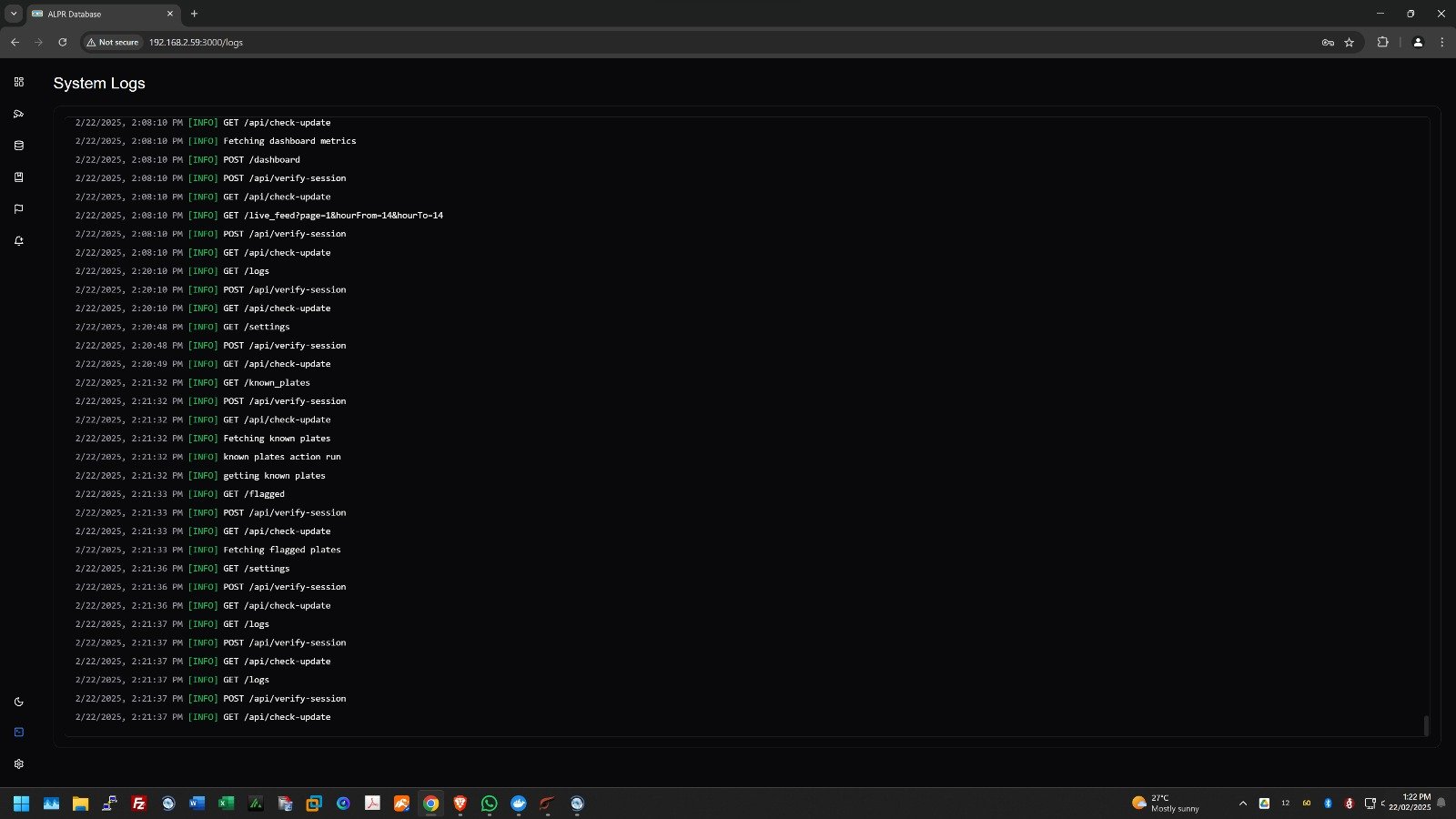

Did you use the install script or did you create the directories and copy the files manually? Please check the logs tab at the bottom left of the app also and see if there are any other errors there. @sunny0101786



[sunny0101786]

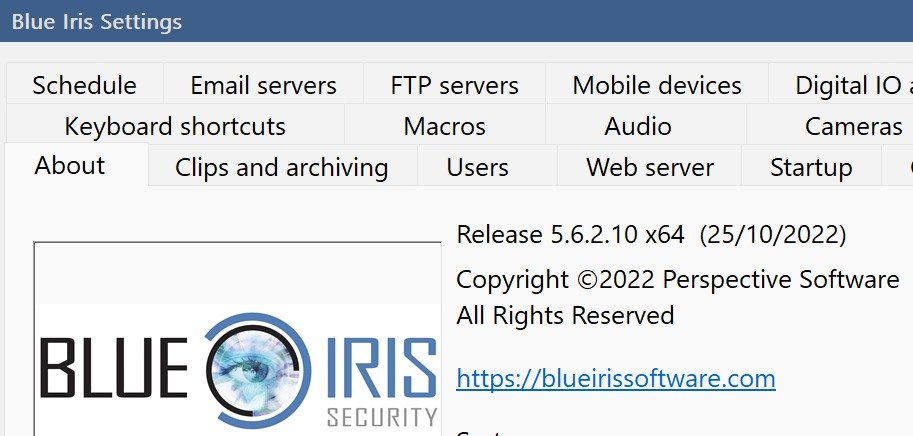

I’m running version 5.6.2.10. Do you think it has something to do with this? I’m still in the process of upgrading, but I’m having a bit of an issue I haven’t received any new keys from the BI team yet.
