Full ALPR Database System for Blue Iris!

algertc said:
1.8 Released. Correct plate number fixed in the final release.

I also created a full separate site for documentation, which looks way more professional than this actually is, LOL.

There are definitely quite a lot of people using it, which I find so incredibly cool, and the goal of this separate and more thorough documentation was mainly to help new users ( I am going to create new install guide videos for both Windows and Linux soon), but I also did this to be able to put it on my resume and have it look a little bit more legitimate compared to just the GitHub repository, which is comparatively very small in relation to the number of downloads and active users.


I have a TPMS rig fully built out with double SDR (even though I would really like to explore other options, this is good for testing for now, as the output will be the exact same either way). I'm going to see if I can figure out any way to use some AI to identify patterns between the received TPMS data and the ALPR recognitions. It will likely take a little while to get it working accurately, but I am hopeful. I also used a very large box (which I will post later), to allow for space to add anything else in the future (like WIFI or BLE fingerprinting).


TPMS certainly isn't perfect, but the idea of getting PII off cars has been on my mind constantly for the past few weeks. Without a license plate, it really is hard, but TPMS is the next best thing. You can't expect to get it for every vehicle, but it's a whole lot better than nothing and definitely has the capability to incriminate. Hopefully soon we can get some more advanced RF fingerprinting deployed using the passing traffic's cell phones.

Any users that have already updated should:
From the location where your compose file, storage, etc is: docker compose down , docker pull, and docker compose up -d
Click to expand...

Thanks! Just updated to the latest and the plate correct flag works now. Going to update my production version tmrw. Thanks again!

  • Like
Reactions: algertc
olympia said:
No sure what did I do differently than first time, but redid this and now it works as an app. Very nice!
However, it looks like bypass authentication via iframe/ Home Assistant doesn't work any more.
Click to expand...

Am I the only one experiencing this issue with allowing access via iframe from Home Assistant?

Last edited:
I'm loving the work being done here! Im looking to get mine set up when I come back from a holiday, so I am pretty new to this.

Two questions:
How are you handling plates from different states/countries? Are you bunching them all in one?

What about MAC addresses? Sure, some cars dont have them, some only transmit them when a device is connected and others have randomised addresses, but councils do use these for traffic monitoring. Then police could use them to track a car (albeit only in high profile cases or if they are used to doing this).

olympia said:
Am I the only one experiencing this issue with allowing access via iframe from Home Assistant?
Click to expand...

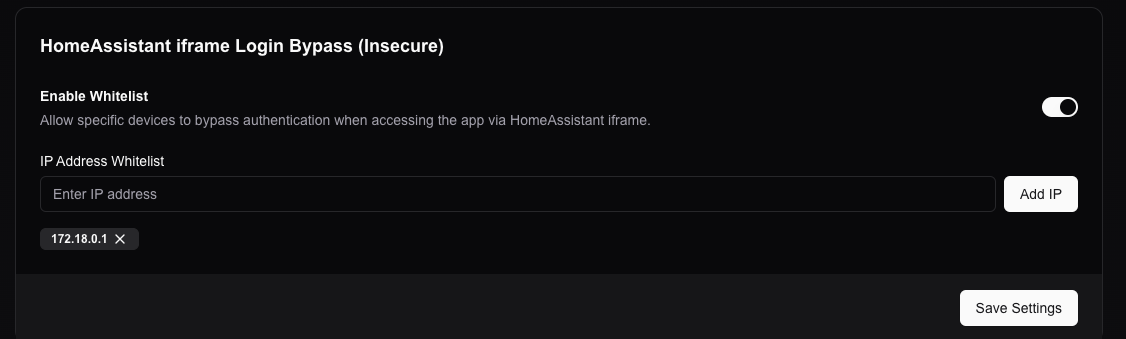

Add the ip address of your docker container to the whitelist in the ALPR Database app and it will allow iframe access in home assistant.

Screen Shot 2025-03-20 at 12.12.56 PM.png

Anyone getting any plate reads below confidence threshold? My threshold is around 70%, but once in a while, I am seeing these show up with v0.18, which I wasn't getting before:



And a little more weirdness:

Screenshot from 2025-03-20 23-23-56.png


The reading of 8XBZ466 has the image of the vehicle above (9MOA506).

Here is another one:

Screenshot from 2025-03-21 09-09-18.png


On the BI side, which correctly marks it as a no read because the confidence is below threshold:

Screenshot from 2025-03-21 09-10-37.png


I am seeing this on multiple version of BI, both 5.9.9.24 and 5.9.9.29, .24 pre-dates the AI hardening code.

Last edited:
Vettester said:

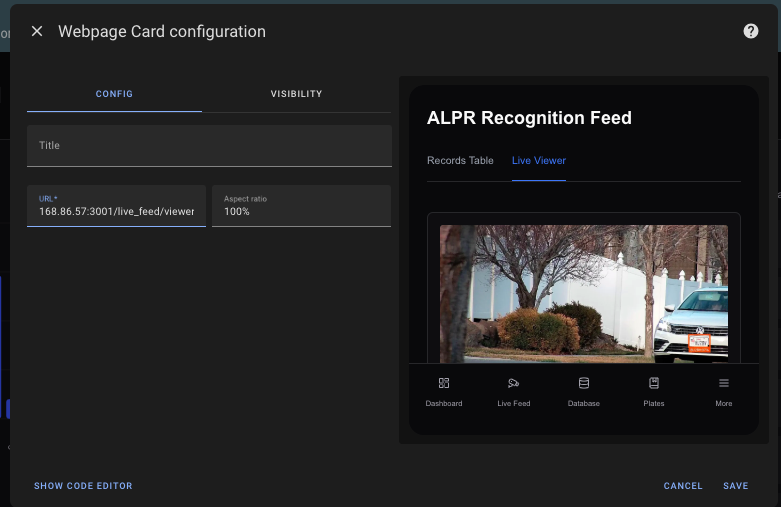

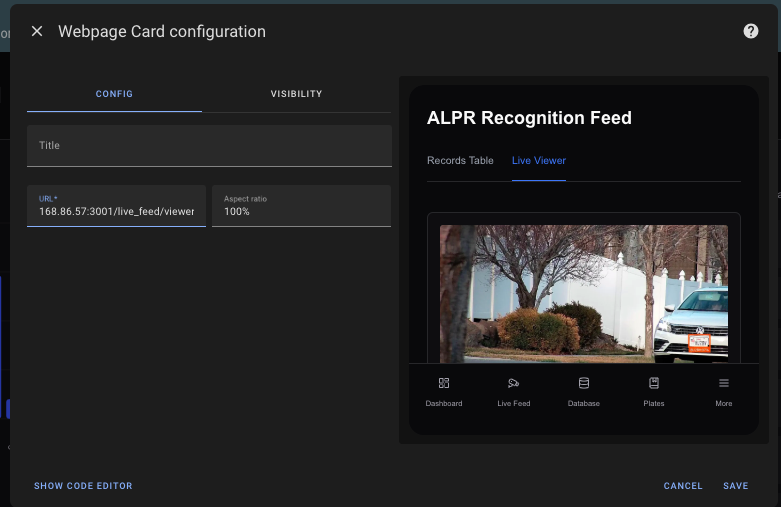

Yep, it works both as a dashboard or a web page card.

View attachment 217202
Click to expand...

I figured it out! It’s not the IP address of the HA Docker that needs to be added to the whitelist, but the IP of the device you're accessing HA from. The reason it suddenly stopped working for me (which I initially thought was due to the 0.1.8 update) was actually a coincidence with the update: my device's dynamic IP had changed.

  • Like
Reactions: PeteJ
I have plates working in CPAI and trying to send to ALPR database.



I'm seeing these errors on the alpr-app-1 container:

Received plate read data: {
2025-03-21 21:17:41 plate_number: 'CZCC 641',
2025-03-21 21:17:40 Error processing request: error: there is no unique or exclusion constraint matching the ON CONFLICT specification
2025-03-21 21:17:40 at <unknown> (/app/node_modules/pg/lib/client.js:535:17)
2025-03-21 21:17:40 at async p (/app/.next/server/app/api/plate-reads/route.js:1:6064)
2025-03-21 21:17:40 at async te.do (/app/node_modules/next/dist/compiled/next-server/app-route.runtime.prod.js:18:17826)
2025-03-21 21:17:40 at async te.handle (/app/node_modules/next/dist/compiled/next-server/app-route.runtime.prod.js:18:22492)
2025-03-21 21:17:40 at async doRender (/app/node_modules/next/dist/server/base-server.js:1455:42)
2025-03-21 21:17:40 at async responseGenerator (/app/node_modules/next/dist/server/base-server.js:1814:28)
2025-03-21 21:17:40 at async NextNodeServer.renderToResponseWithComponentsImpl (/app/node_modules/next/dist/server/base-server.js:1824:28)
2025-03-21 21:17:40 at async NextNodeServer.renderPageComponent (/app/node_modules/next/dist/server/base-server.js:2240:24)
2025-03-21 21:17:40 at async NextNodeServer.renderToResponseImpl (/app/node_modules/next/dist/server/base-server.js:2278:32) {
2025-03-21 21:17:40 length: 148,
2025-03-21 21:17:40 severity: 'ERROR',
2025-03-21 21:17:40 code: '42P10',
2025-03-21 21:17:40 detail: undefined,
2025-03-21 21:17:40 hint: undefined,
2025-03-21 21:17:40 position: undefined,
2025-03-21 21:17:40 internalPosition: undefined,
2025-03-21 21:17:40 internalQuery: undefined,
2025-03-21 21:17:40 where: undefined,
2025-03-21 21:17:40 schema: undefined,
2025-03-21 21:17:40 table: undefined,
2025-03-21 21:17:40 column: undefined,
2025-03-21 21:17:40 dataType: undefined,
2025-03-21 21:17:40 constraint: undefined,
2025-03-21 21:17:40 file: 'plancat.c',
2025-03-21 21:17:40 line: '870',
2025-03-21 21:17:40 routine: 'infer_arbiter_indexes'
2025-03-21 21:17:40 }


I also see this odd reference to 172.18.0.1 IP address and reference that relation 'tags' does not exist:

GET /manifest.webmanifest
2025-03-21 17:33:09 POST /api/verify-whitelist
2025-03-21 17:33:09 Checking IP: 172.18.0.1
2025-03-21 17:33:09 No whitelisted IPs configured
2025-03-21 17:33:09 No session cookie block run
2025-03-21 17:33:09 GET /login
2025-03-21 17:33:11 GET /live_feed
2025-03-21 17:33:11 POST /api/verify-session
2025-03-21 17:33:11 GET /api/check-update
2025-03-21 17:33:11 Fetching latest plate reads
2025-03-21 17:33:11 Fetching tags
2025-03-21 17:33:11 Error getting tags: error: relation "tags" does not exist
2025-03-21 17:33:11 at <unknown> (/app/node_modules/pg/lib/client.js:535:17)
2025-03-21 17:33:11 at async (/app/.next/server/chunks/8079.js:296:75)
2025-03-21 17:33:11 at async l (/app/.next/server/chunks/8079.js:1:1502)
2025-03-21 17:33:11 at async $ (/app/.next/server/chunks/7517.js:1:5779)
2025-03-21 17:33:11 at async p (/app/.next/server/app/live_feed/page.js:1:11413) {
2025-03-21 17:33:11 length: 103,
2025-03-21 17:33:11 severity: 'ERROR',
2025-03-21 17:33:11 code: '42P01',
2025-03-21 17:33:11 detail: undefined,
2025-03-21 17:33:11 hint: undefined,
2025-03-21 17:33:11 position: '15',
2025-03-21 17:33:11 internalPosition: undefined,
2025-03-21 17:33:11 internalQuery: undefined,
2025-03-21 17:33:11 where: undefined,
2025-03-21 17:33:11 schema: undefined,
2025-03-21 17:33:11 table: undefined,
2025-03-21 17:33:11 column: undefined,
2025-03-21 17:33:11 dataType: undefined,
2025-03-21 17:33:11 constraint: undefined,
2025-03-21 17:33:11 file: 'parse_relation.c',
2025-03-21 17:33:11 line: '1373',
2025-03-21 17:33:11 routine: 'parserOpenTable'
2025-03-21 17:33:11 }

Alert Macro:


Post string: { "plate_number":"&PLATE", "Image":"&ALERT_JPEG", "camera":"&CAM", "ALERT_PATH": "&ALERT_PATH", "ALERT_CLIP": "&ALERT_CLIP", "timestamp":"&ALERT_TIME" }


ALPR Logs show similar messages:




Thoughts where I've gone wrong?

Check your settings on the dashboard under Home Assistant for the whitelisted IP, maybe you have that enabled.

How did you install this? Using the installation script, or manually?

svalvasori said:

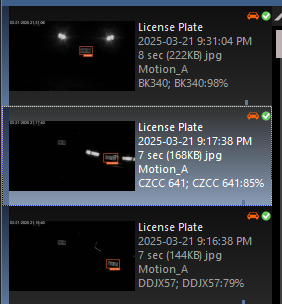

I have plates working in CPAI and trying to send to ALPR database.
View attachment 217255


I'm seeing these errors on the alpr-app-1 container:

Received plate read data: {
2025-03-21 21:17:41 plate_number: 'CZCC 641',
2025-03-21 21:17:40 Error processing request: error: there is no unique or exclusion constraint matching the ON CONFLICT specification
2025-03-21 21:17:40 at <unknown> (/app/node_modules/pg/lib/client.js:535:17)
2025-03-21 21:17:40 at async p (/app/.next/server/app/api/plate-reads/route.js:1:6064)
2025-03-21 21:17:40 at async te.do (/app/node_modules/next/dist/compiled/next-server/app-route.runtime.prod.js:18:17826)
2025-03-21 21:17:40 at async te.handle (/app/node_modules/next/dist/compiled/next-server/app-route.runtime.prod.js:18:22492)
2025-03-21 21:17:40 at async doRender (/app/node_modules/next/dist/server/base-server.js:1455:42)
2025-03-21 21:17:40 at async responseGenerator (/app/node_modules/next/dist/server/base-server.js:1814:28)
2025-03-21 21:17:40 at async NextNodeServer.renderToResponseWithComponentsImpl (/app/node_modules/next/dist/server/base-server.js:1824:28)
2025-03-21 21:17:40 at async NextNodeServer.renderPageComponent (/app/node_modules/next/dist/server/base-server.js:2240:24)
2025-03-21 21:17:40 at async NextNodeServer.renderToResponseImpl (/app/node_modules/next/dist/server/base-server.js:2278:32) {
2025-03-21 21:17:40 length: 148,
2025-03-21 21:17:40 severity: 'ERROR',
2025-03-21 21:17:40 code: '42P10',
2025-03-21 21:17:40 detail: undefined,
2025-03-21 21:17:40 hint: undefined,
2025-03-21 21:17:40 position: undefined,
2025-03-21 21:17:40 internalPosition: undefined,
2025-03-21 21:17:40 internalQuery: undefined,
2025-03-21 21:17:40 where: undefined,
2025-03-21 21:17:40 schema: undefined,
2025-03-21 21:17:40 table: undefined,
2025-03-21 21:17:40 column: undefined,
2025-03-21 21:17:40 dataType: undefined,
2025-03-21 21:17:40 constraint: undefined,
2025-03-21 21:17:40 file: 'plancat.c',
2025-03-21 21:17:40 line: '870',
2025-03-21 21:17:40 routine: 'infer_arbiter_indexes'
2025-03-21 21:17:40 }


I also see this odd reference to 172.18.0.1 IP address and reference that relation 'tags' does not exist:

GET /manifest.webmanifest
2025-03-21 17:33:09 POST /api/verify-whitelist
2025-03-21 17:33:09 Checking IP: 172.18.0.1
2025-03-21 17:33:09 No whitelisted IPs configured
2025-03-21 17:33:09 No session cookie block run
2025-03-21 17:33:09 GET /login
2025-03-21 17:33:11 GET /live_feed
2025-03-21 17:33:11 POST /api/verify-session
2025-03-21 17:33:11 GET /api/check-update
2025-03-21 17:33:11 Fetching latest plate reads
2025-03-21 17:33:11 Fetching tags
2025-03-21 17:33:11 Error getting tags: error: relation "tags" does not exist
2025-03-21 17:33:11 at <unknown> (/app/node_modules/pg/lib/client.js:535:17)
2025-03-21 17:33:11 at async (/app/.next/server/chunks/8079.js:296:75)
2025-03-21 17:33:11 at async l (/app/.next/server/chunks/8079.js:1:1502)
2025-03-21 17:33:11 at async $ (/app/.next/server/chunks/7517.js:1:5779)
2025-03-21 17:33:11 at async p (/app/.next/server/app/live_feed/page.js:1:11413) {
2025-03-21 17:33:11 length: 103,
2025-03-21 17:33:11 severity: 'ERROR',
2025-03-21 17:33:11 code: '42P01',
2025-03-21 17:33:11 detail: undefined,
2025-03-21 17:33:11 hint: undefined,
2025-03-21 17:33:11 position: '15',
2025-03-21 17:33:11 internalPosition: undefined,
2025-03-21 17:33:11 internalQuery: undefined,
2025-03-21 17:33:11 where: undefined,
2025-03-21 17:33:11 schema: undefined,
2025-03-21 17:33:11 table: undefined,
2025-03-21 17:33:11 column: undefined,
2025-03-21 17:33:11 dataType: undefined,
2025-03-21 17:33:11 constraint: undefined,
2025-03-21 17:33:11 file: 'parse_relation.c',
2025-03-21 17:33:11 line: '1373',
2025-03-21 17:33:11 routine: 'parserOpenTable'
2025-03-21 17:33:11 }

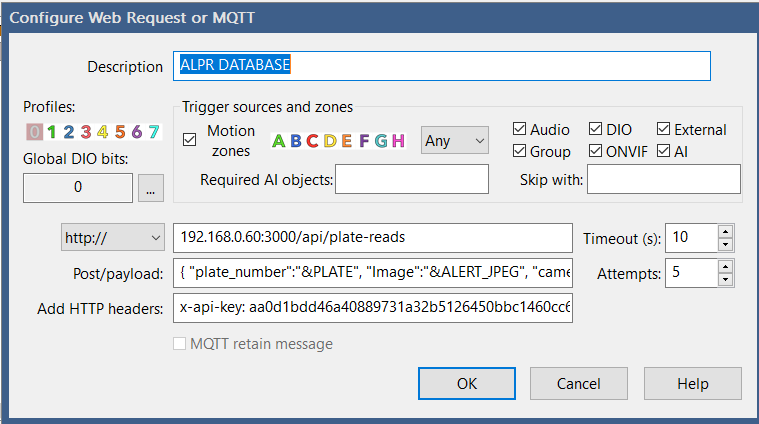

Alert Macro:
View attachment 217254

Post string: { "plate_number":"&PLATE", "Image":"&ALERT_JPEG", "camera":"&CAM", "ALERT_PATH": "&ALERT_PATH", "ALERT_CLIP": "&ALERT_CLIP", "timestamp":"&ALERT_TIME" }

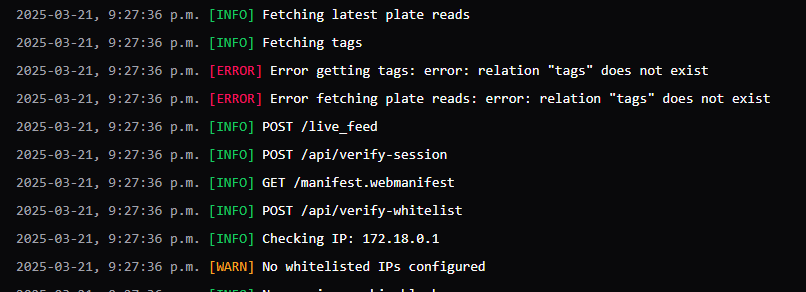

ALPR Logs show similar messages:
View attachment 217256



Thoughts where I've gone wrong?
Click to expand...
Sounds like a DB schema issue again. Try the solution presented in post 660
algertc

Post in thread 'Full ALPR Database System for Blue Iris!'

Hi, @smallik

You're very close. This seems like a very minor issue with the database schema, which is what defines how the tables and columns are structured.

The error is stating that there is a relation missing. Normally, this should be created automatically and should exist in the migrations.sql file.

It is possible that the install script didn't properly get the file it needs, so we should be able to resolve this by downloading the file and just restarting the container.


Here is the file you need: migrations.sql

Download it and place it in the same location as the...

PeteJ said:
Check your settings on the dashboard under Home Assistant for the whitelisted IP, maybe you have that enabled.

How did you install this? Using the installation script, or manually?
Click to expand...
Home Assistant is disabled. Installed as it was told on GitHub:


VideoDad said:
Sounds like a DB schema issue again. Try the solution presented in post 660
algertc

Post in thread 'Full ALPR Database System for Blue Iris!'

Hi, @smallik

You're very close. This seems like a very minor issue with the database schema, which is what defines how the tables and columns are structured.

The error is stating that there is a relation missing. Normally, this should be created automatically and should exist in the migrations.sql file.

It is possible that the install script didn't properly get the file it needs, so we should be able to resolve this by downloading the file and just restarting the container.


Here is the file you need: migrations.sql

Download it and place it in the same location as the...
Click to expand...
I replaced the file and restarted via Powershell, no change, the same errors persist. If it makes a difference, I installed ALPR before CPAI, or CUDA or any of that stuff - I mistakenly thought I just passed images to ALPR.

svalvasori said:
Post string: { "plate_number":"&PLATE", "Image":"&ALERT_JPEG", "camera":"&CAM", "ALERT_PATH": "&ALERT_PATH", "ALERT_CLIP": "&ALERT_CLIP", "timestamp":"&ALERT_TIME" }


Thoughts where I've gone wrong?
Click to expand...
Your Post/payload string is wrong. It should be: { "ai_dump":&JSON, "Image":"&ALERT_JPEG", "camera":"&CAM", "ALERT_PATH": "&ALERT_PATH", "ALERT_CLIP": "&ALERT_CLIP", "timestamp":"&ALERT_TIME" }

svalvasori said:
I replaced the file and restarted via Powershell, no change, the same errors persist. If it makes a difference, I installed ALPR before CPAI, or CUDA or any of that stuff - I mistakenly thought I just passed images to ALPR.
Click to expand...
Did you do the rest of the steps including the docker compose statements at the end of that post?

Vettester said:
Your Post/payload string is wrong. It should be: { "ai_dump":&JSON, "Image":"&ALERT_JPEG", "camera":"&CAM", "ALERT_PATH": "&ALERT_PATH", "ALERT_CLIP": "&ALERT_CLIP", "timestamp":"&ALERT_TIME" }
Click to expand...
ok - I had used the one on the GitHub instructions. I've changed it to the one above, the log messages looks about the same other than I don't see the plate details in it. I'm assuming it's in the ai_dump. Still, the results are the same.
2025-03-22 08:13:42 POST /api/plate-reads
2025-03-22 08:13:42 Received plate read data: {
2025-03-22 08:13:42 ai_dump: [ { api: 'alpr', found: [Object] } ],
2025-03-22 08:13:42 Image: '/9j/4AAQ......
2025-03-22 08:13:42 camera: 'LPR',
2025-03-22 08:13:42 ALERT_PATH: 'LPR.20250322_081340.33.3-1.jpg',
2025-03-22 08:13:42 ALERT_CLIP: '@89703575840923',
2025-03-22 08:13:42 timestamp: '2025-03-22T12:13:40.876Z'
2025-03-22 08:13:42 }
2025-03-22 08:13:42 Database connection established
2025-03-22 08:13:42 [FileStorage] Successfully saved image
2025-03-22 08:13:42 Error processing request: error: there is no unique or exclusion constraint matching the ON CONFLICT specification
2025-03-22 08:13:42 at <unknown> (/app/node_modules/pg/lib/client.js:535:17)
2025-03-22 08:13:42 at async p (/app/.next/server/app/api/plate-reads/route.js:1:6064)
2025-03-22 08:13:42 at async te.do (/app/node_modules/next/dist/compiled/next-server/app-route.runtime.prod.js:18:17826)
2025-03-22 08:13:42 at async te.handle (/app/node_modules/next/dist/compiled/next-server/app-route.runtime.prod.js:18:22492)
2025-03-22 08:13:42 at async doRender (/app/node_modules/next/dist/server/base-server.js:1455:42)
2025-03-22 08:13:42 at async responseGenerator (/app/node_modules/next/dist/server/base-server.js:1814:28)
2025-03-22 08:13:42 at async NextNodeServer.renderToResponseWithComponentsImpl (/app/node_modules/next/dist/server/base-server.js:1824:28)
2025-03-22 08:13:42 at async NextNodeServer.renderPageComponent (/app/node_modules/next/dist/server/base-server.js:2240:24)
2025-03-22 08:13:42 at async NextNodeServer.renderToResponseImpl (/app/node_modules/next/dist/server/base-server.js:2278:32) {
2025-03-22 08:13:42 length: 148,
2025-03-22 08:13:42 severity: 'ERROR',
2025-03-22 08:13:42 code: '42P10',
2025-03-22 08:13:42 detail: undefined,
2025-03-22 08:13:42 hint: undefined,
2025-03-22 08:13:42 position: undefined,
2025-03-22 08:13:42 internalPosition: undefined,
2025-03-22 08:13:42 internalQuery: undefined,
2025-03-22 08:13:42 where: undefined,
2025-03-22 08:13:42 schema: undefined,
2025-03-22 08:13:42 table: undefined,
2025-03-22 08:13:42 column: undefined,
2025-03-22 08:13:42 dataType: undefined,
2025-03-22 08:13:42 constraint: undefined,
2025-03-22 08:13:42 file: 'plancat.c',
2025-03-22 08:13:42 line: '870',
2025-03-22 08:13:42 routine: 'infer_arbiter_indexes'
2025-03-22 08:13:42 }

svalvasori said:
ok - I had used the one on the GitHub instructions. I've changed it to the one above, the log messages looks about the same other than I don't see the plate details in it. I'm assuming it's in the ai_dump. Still, the results are the same.
2025-03-22 08:13:42 POST /api/plate-reads
2025-03-22 08:13:42 Received plate read data: {
2025-03-22 08:13:42 ai_dump: [ { api: 'alpr', found: [Object] } ],
2025-03-22 08:13:42 Image: '/9j/4AAQ......
2025-03-22 08:13:42 camera: 'LPR',
2025-03-22 08:13:42 ALERT_PATH: 'LPR.20250322_081340.33.3-1.jpg',
2025-03-22 08:13:42 ALERT_CLIP: '@89703575840923',
2025-03-22 08:13:42 timestamp: '2025-03-22T12:13:40.876Z'
2025-03-22 08:13:42 }
2025-03-22 08:13:42 Database connection established
2025-03-22 08:13:42 [FileStorage] Successfully saved image
2025-03-22 08:13:42 Error processing request: error: there is no unique or exclusion constraint matching the ON CONFLICT specification
2025-03-22 08:13:42 at <unknown> (/app/node_modules/pg/lib/client.js:535:17)
2025-03-22 08:13:42 at async p (/app/.next/server/app/api/plate-reads/route.js:1:6064)
2025-03-22 08:13:42 at async te.do (/app/node_modules/next/dist/compiled/next-server/app-route.runtime.prod.js:18:17826)
2025-03-22 08:13:42 at async te.handle (/app/node_modules/next/dist/compiled/next-server/app-route.runtime.prod.js:18:22492)
2025-03-22 08:13:42 at async doRender (/app/node_modules/next/dist/server/base-server.js:1455:42)
2025-03-22 08:13:42 at async responseGenerator (/app/node_modules/next/dist/server/base-server.js:1814:28)
2025-03-22 08:13:42 at async NextNodeServer.renderToResponseWithComponentsImpl (/app/node_modules/next/dist/server/base-server.js:1824:28)
2025-03-22 08:13:42 at async NextNodeServer.renderPageComponent (/app/node_modules/next/dist/server/base-server.js:2240:24)
2025-03-22 08:13:42 at async NextNodeServer.renderToResponseImpl (/app/node_modules/next/dist/server/base-server.js:2278:32) {
2025-03-22 08:13:42 length: 148,
2025-03-22 08:13:42 severity: 'ERROR',
2025-03-22 08:13:42 code: '42P10',
2025-03-22 08:13:42 detail: undefined,
2025-03-22 08:13:42 hint: undefined,
2025-03-22 08:13:42 position: undefined,
2025-03-22 08:13:42 internalPosition: undefined,
2025-03-22 08:13:42 internalQuery: undefined,
2025-03-22 08:13:42 where: undefined,
2025-03-22 08:13:42 schema: undefined,
2025-03-22 08:13:42 table: undefined,
2025-03-22 08:13:42 column: undefined,
2025-03-22 08:13:42 dataType: undefined,
2025-03-22 08:13:42 constraint: undefined,
2025-03-22 08:13:42 file: 'plancat.c',
2025-03-22 08:13:42 line: '870',
2025-03-22 08:13:42 routine: 'infer_arbiter_indexes'
2025-03-22 08:13:42 }
Click to expand...
You have the exact same symptoms as that earlier thread. Your database schema doesn't seem to be up to date. Can you look in your ALPR folder and post the timestamps of your schema.sql, migrations.sql and docker-compose.yml?

Have you tried just running the update script? This takes care of all of the details like using the latest migration.sql and schema.sql. I use to update manually, but the update in 0.18 has worked really well for me.

VideoDad said:
You have the exact same symptoms as that earlier thread. Your database schema doesn't seem to be up to date. Can you look in your ALPR folder and post the timestamps of your schema.sql, migrations.sql and docker-compose.yml?
Click to expand...


This is after running the update script. Still have the same issue.

You must log in or register to reply here.
Top Bottom
